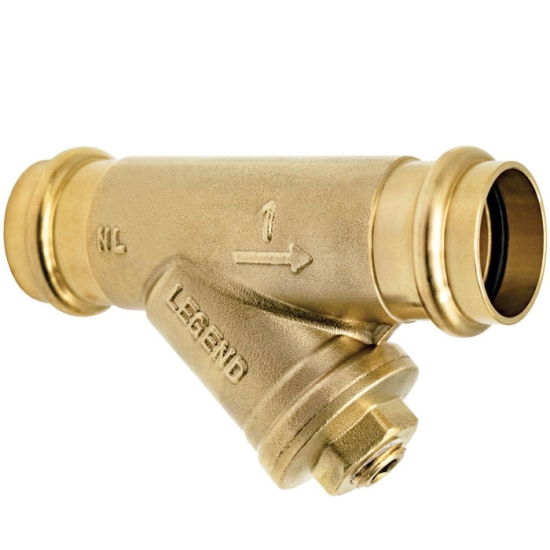

Legend, P-16NL Brass PRESS Y-STRAINER, 1/2"
Item Name | : | LEAD-FREE BRASS PRESS-CONNECT Y-STRAINER |
Type | : | P-16NL |
Nominal Size | : | 1/2 IN |
Connection Type | : | Press-Connect |
Screen Size | : | 20 Mesh |
Pressure Rating | : | Working Pressure, Non-Shock: 200 PSI up to 250° F |
Body Material | : | Brass |
Screen Material | : | 304 SS 20-Mesh Screen |
Material Standard | : | Body: Lead-free forged brass, Screen: Stainless Steel, Cap, and Plug: Lead-free forged brass |
Material Specification | : | Body, Cap, and Plug: UNS Alloy C46500, Screen/Strainer: AISI 304 |
Industry Standards | : | ANSI/ASME B16.51: Standard specification for copper and copper alloy press-connect pressure fittings. |
Temperature Rating | : | 15 PSI (WSP) at 250° F |
Weight | : | .33 |
