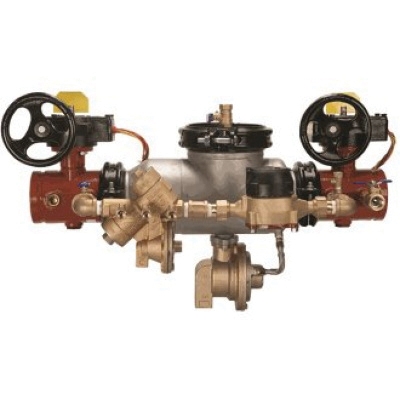

Wilkins 375ASTDA Lead Free 304L Stainless Steel Backflow Preventer Reduced Pressure Detector Assembly With Grooved End Butterfly Valve And Integral Supervisory Switch, 2-1/2 IN, Grooved End
The Zurn Wilkins 375ASTDA reduced pressure detector assembly with stainless steel body provides high hazard protection and is ideal for fire protection applications, with a metered by-pass to detect leaks and unauthorized water use.
Item Name | : | Reduced Pressure Detector Assembly With Grooved End Butterfly Valve And Integral Supervisory Switch |
Type | : | Backflow Preventer |
Series/Model | : | Model 375ASTDA |
Nominal Size | : | 2-1/2 IN |
Connection Type | : | Grooved End |
Pressure Rating | : | 175 PSI |
Temperature Rating | : | 140 DEG F |
Body Material | : | 304L Stainless Steel |
Stem Material | : | Stainless Steel |
Trim Material | : | EPDM Disc |
Material Standard | : | Stem: ASTM A276 |
Industry Standards | : | ASSE Listed 1047, Certified To NSF/ANSI 61, CSA Certified B64.4, AWWA Compliant C550, FM Approved, UL/CUL Classified, AWWA C606 |
Width | : | 28-3/4 IN |
Height | : | 18 IN |
Lead Free | : | Yes |
