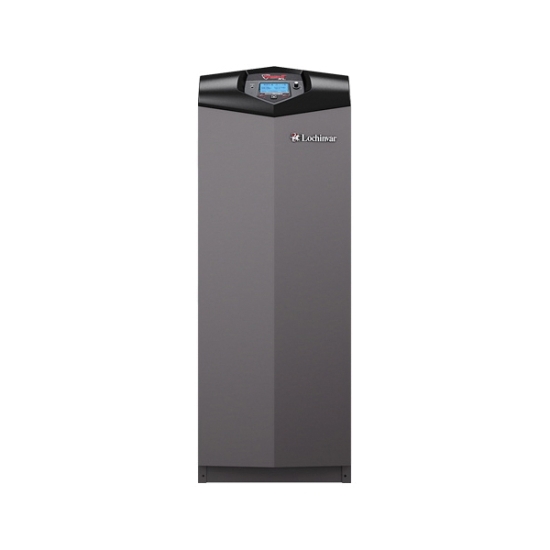

Lochinvar Knight® XL KBN801-M9 Commercial Natural Gas Condensing Heating Boiler, 160000 - 800000 BTU/HR Input
Sub Brand | : | Knight® XL |
Item Name | : | Condensing Heating Boiler |
Type | : | Commercial |
Fuel Type | : | Natural Gas |
BTU Rating | : | 160000 - 800000 Input, 752000 Output BTU/HR |
Voltage Rating | : | 120 VAC At 60 HZ |
Phase | : | 1 PH |
Material | : | Stainless Steel Heat Exchanger |
Thermal Efficiency | : | 94% |
Ignition Type | : | Direct Spark |
Maximum Pressure | : | 160 PSI |
Gas Connection | : | 1 IN |
Water Connection | : | 2 IN |
Air Inlet | : | 4 IN |
Vent Size | : | 6 IN |
Height | : | 42-1/2 IN |
Width | : | 15-1/2 IN |
Depth | : | 45-1/4 IN |
Height To Gas Connection | : | 13-3/4 IN |
Industry Standards | : | AHRI Certified, CSA Design Certified, ASME Certified "H" Stamped |
Other Physical Dimension | : | 18-1/4 IN Height To Inlet And Outlet |
Additional Specifications | : | Net BTU/HR: 654000 |
The Knight™ XL boiler is today's smartest choice in condensing boiler performance. It has environmentally friendly features and the exclusive Smart System™ control.
