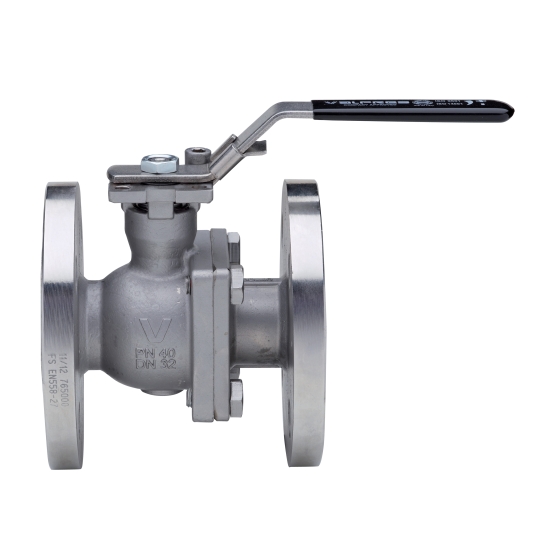

Bonomi 766000 Class 150 Stainless Steel Locking Handle Full-Port Split-Body Ball Valve, 1 IN, Flanged
Stainless steel, ANSI class 150 flanged ball valve, full port, with locking handle.
Item Name | : | Ball Valve |
Type | : | Full-Port, Split-Body |
Series/Model | : | Series 766000 |
Nominal Size | : | 1 IN |
Connection Type | : | Flanged |
Pressure Rating | : | 150 PSI |
Pressure Class | : | Class 150 |
Temperature Rating | : | -4 To 366 DEG F |
Body Material | : | Stainless Steel |
Operator Type | : | Locking Handle |
Handle Material | : | Stainless Steel |
Stem Material | : | 316 Stainless Steel |
Packing Material | : | PTFE |
Seat Material | : | PTFE |
Material Standard | : | Body: ASTM A351 Grade CF8M |
Industry Standards | : | ANSI B16.5, ANSI B16.10, ANSI B16.34 |
Width | : | 5 IN |
Height | : | 4.33 IN |
Lead Free | : | No |
Other Physical Dimension | : | 2.72 IN Inlet Center To Top Of Handle, 0.43 IN Handle Length |
Additional Specifications | : | Flow Co-Efficient (Cv): 50 |
Brand | : | Bonomi |
Firesafe | : | No |
