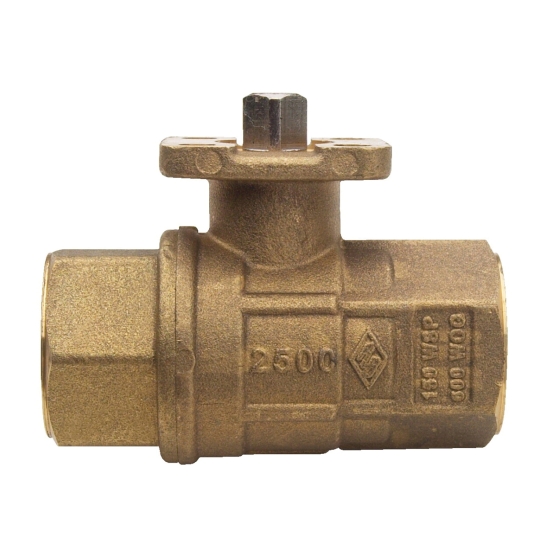

Bonomi 250N Brass 2-Piece Full-Port Ball Valve, 1/2 IN, FNPT
Item Name | : | Ball Valve |
Type | : | 2-Piece, Full-Port |
Series/Model | : | Series 250N |
Nominal Size | : | 1/2 IN |
Connection Type | : | FNPT |
Number Of Ports/Ways | : | 2-Way |
Pressure Rating | : | 600 PSI (CWP), 150 PSI (SWP) |
Temperature Rating | : | -4 To 366 DEG F |
Opening Size | : | 0.56 IN |
Body Material | : | Brass |
Stem Material | : | Brass |
Trim Material | : | Brass Ball |
Packing Material | : | PTFE |
Seat Material | : | PTFE |
Seal Material | : | EPDM, FKM O-Ring |
Material Specification | : | Body And Ball: UNS C38000, CW617N UNI EN 12165, Stem: UNS C38500, CW614N UNI EN 12164 |
Finish/Color | : | Chrome Plated Ball |
Industry Standards | : | UL Listed, MSS-SP-110 Compliant, ANSI B1.20.1 |
Width | : | 2.64 IN |
Lead Free | : | No |
Other Physical Dimension | : | 1.28 IN Inlet Center To Top Of Handle |
Additional Specifications | : | Flow Co-Efficient (Cv): 16.3, Torque Rating: 53.1 IN-LB |
Brand | : | Bonomi |
Firesafe | : | No |
