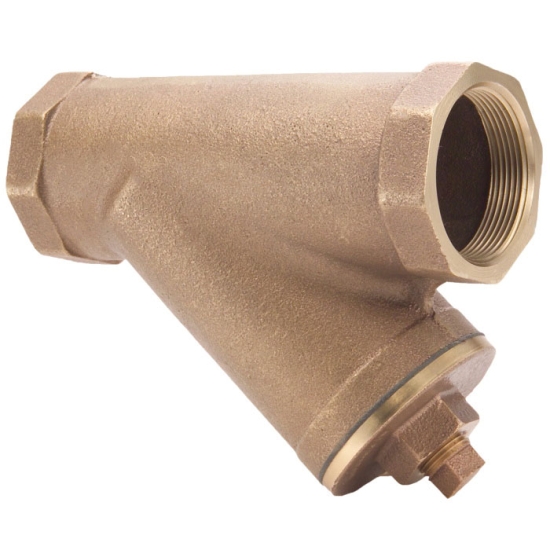

Legend T/S-15 Class 150 Bronze Y-Strainer, 3 IN, FNPT, 20 Mesh Screen
Item Name | : | Y-Strainer |
Series/Model | : | Model T/S-15 |
Nominal Size | : | 3 IN |
Connection Type | : | FNPT |
Screen Size | : | 20 Mesh |
Blow-Off Port Size | : | 1/2 IN |
Pressure Class | : | Class 150 |
Pressure Rating | : | 150 PSI (WSP), 300 PSI (WOG) |
Body Material | : | Bronze |
Screen Material | : | 304 Stainless Steel |
Material Standard | : | Body And Cap: ASTM B584, Screen/Strainer: ASTM A240 |
Material Specification | : | Body And Cap: UNS C89836, Screen/Strainer: UNS S30400 |
Industry Standards | : | ANSI/NSF 372, ANSI/ASME B1.20.1 |
Width | : | 10.2 IN |
Other Physical Dimension | : | 6.3 IN Inlet Center To Cap End |
Additional Specifications | : | Lead Free: Yes |
