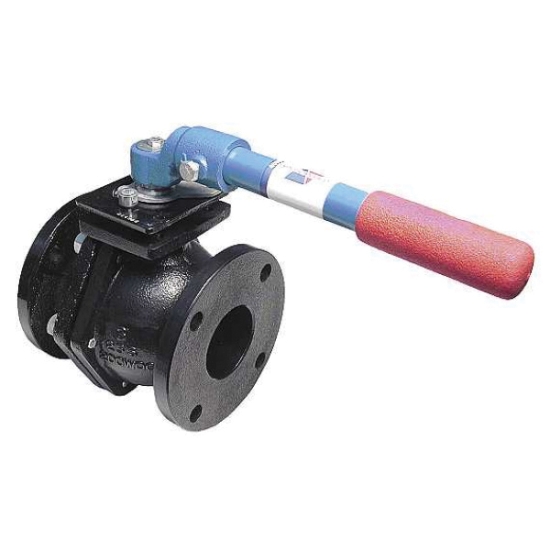

American Valve 4000 Cast Iron Locking Handle Ball Valve, 3 IN, Flanged
Replaces any gate valve or eccentric plug valve. Same end-to-end dimensions, but with the convenience of quarter-turn, dramatically lower torque, and the corrosion-resistance of PFA fused 0.008 IN into the solid iron ball. A revolution in ball valve technology.
Item Name | : | Ball Valve |
Series/Model | : | Model 4000 |
Nominal Size | : | 3 IN |
Connection Type | : | Flanged |
Pressure Rating | : | 125 PSI (WSP), 200 PSI (WOG) |
Temperature Rating | : | 353 DEG F |
Opening Size | : | 3 IN |
Body Material | : | Cast Iron |
Operator Type | : | Locking Handle |
Handle Material | : | Steel |
Stem Material | : | Stainless Steel |
Trim Material | : | Cast Iron/PFA Fused Ball |
Packing Material | : | PTFE |
Gland Material | : | Steel Plate, Carbon Steel Stud |
Material Standard | : | ASTM A126 Class B |
Industry Standards | : | MSS SP-72, ANSI B16.1, ANSI B16.10, Federtal Specification WW-V-35, AWWA C507-99, NSF/ANSI 61 And 372 |
Width | : | 8 IN |
Lead Free | : | No |
Other Physical Dimension | : | 8-1/4 IN Center Of Port To Top, 7-1/2 IN Flange Diameter, 14 IN Center Of Valve To Handle End |
Additional Specifications | : | Number Of Bolt Holes: 4 |
