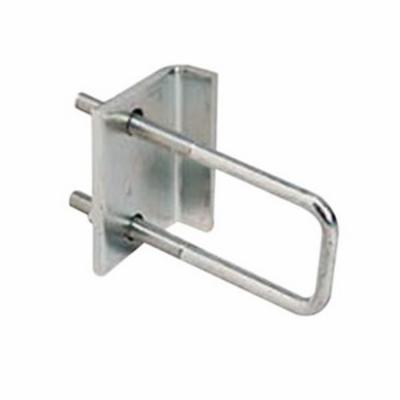

Electro-Zinc Plated Low Carbon Steel Short Clamp With U-3/4 IN, 1200 LB
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
Short Beam Clamp With U-Bolt, 1200 LB Maximum Load, 3/4 IN Jaw Opening, Material: Low Carbon Steel, Material Standard: Finish: ASTM B633 SC3 Type III Or ASTM A653, Finish/Color: Electro-Zinc Plated, Torque Rating: 150 IN-LB, 3 IN Length, Other Physical Dimension: 1/4 IN Thickness, 3-3/8 IN Maximum Jaw Capacity, PHD 7070
IMPORTANT NOTICE | : | For the latest specifications and to make sure this item conforms to your needs, call 888-756-4110 or email sales@macombgroup.com |
Item Name | : | Beam Clamp With U-Bolt |
Type | : | Short |
Maximum Load | : | 1200 LB |
Jaw Opening | : | 3/4 IN |
Material | : | Low Carbon Steel |
Material Standard | : | Finish: ASTM B633 SC3 Type III Or ASTM A653 |
Finish/Color | : | Electro-Zinc Plated |
Torque Rating | : | 150 IN-LB |
Length | : | 3 IN |
Other Physical Dimension | : | 1/4 IN Thickness, 3-3/8 IN Maximum Jaw Capacity |
Additional Specifications | : | PHD 7070 |
Application: For use with 13/16 - 1-5/8 IN high channel
