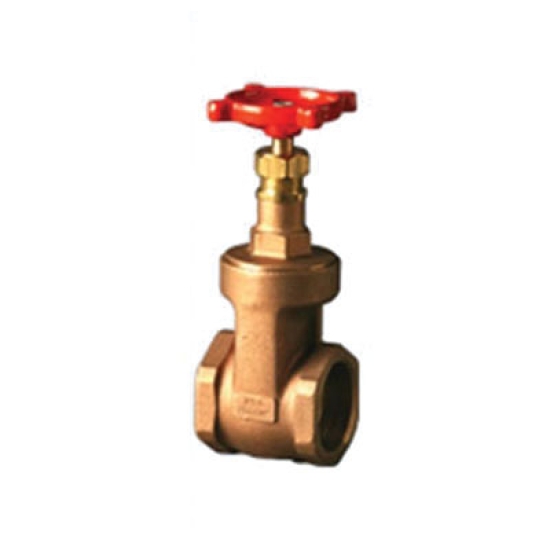

Stockham B-104 Class 125 Bronze Handwheel Non-Rising Stem Gate Valve, 2-1/2 IN, Sweat
Non-Rising Stem Gate Valve, Series/Model: Model B-104, Nominal Size: 2-1/2 IN, Connection Type: Sweat, Pressure Rating: 200 PSI (CWP) Non-Shock, Class 125 Pressure Class, Bronze Body Material, Handwheel Operator Type, Handle Material: Malleable Iron, Stem Material: Copper Silicon Bronze, Trim Material: Bronze Disc, Brass Gland, Material Standard: Body, Bonnet And Disc: ASTM B62, Stem: ASTM B371, Gland: ASTM BSEN12164 CW614N, Handle: ASTM A197, Material Specification: Body, Bonnet And Disc: UNS C83600, Stem: UNS C69400, Handle: UNS F22000, Industry Standards: MSS-SP-80 Type 1 Compliant, 4.3 IN Width, Lead Free: No, Other Physical Dimension: 9.26 IN Inlet Center To Top Of Handle, 5.28 IN Handwheel Diameter, Additional Specifications: Flow Co-Efficient (Cv): 480.32
Item Name | : | Gate Valve |
Type | : | Non-Rising Stem |
Series/Model | : | Model B-104 |
Nominal Size | : | 2-1/2 IN |
Connection Type | : | Sweat |
Pressure Rating | : | 200 PSI (CWP) Non-Shock |
Pressure Class | : | Class 125 |
Body Material | : | Bronze |
Operator Type | : | Handwheel |
Handle Material | : | Malleable Iron |
Stem Material | : | Copper Silicon Bronze |
Trim Material | : | Bronze Disc |
Gland Material | : | Brass |
Material Standard | : | Body, Bonnet And Disc: ASTM B62, Stem: ASTM B371, Gland: ASTM BSEN12164 CW614N, Handle: ASTM A197 |
Material Specification | : | Body, Bonnet And Disc: UNS C83600, Stem: UNS C69400, Handle: UNS F22000 |
Industry Standards | : | MSS-SP-80 Type 1 Compliant |
Width | : | 4.3 IN |
Lead Free | : | No |
Other Physical Dimension | : | 9.26 IN Inlet Center To Top Of Handle, 5.28 IN Handwheel Diameter |
Additional Specifications | : | Flow Co-Efficient (Cv): 480.32 |
Weight | : | 12.400 LB |
Stockham® bronze valves have been specified, installed, and are proven performers in commercial and industrial facilities internationally.
Application: General Services Plumbing, Commercial Plumbing and HVAC, Industrial Plumbing and HVAC, Utility Applications
