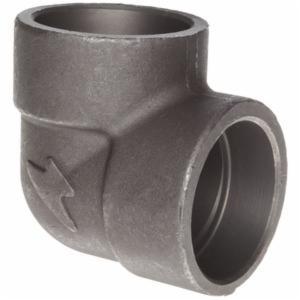

Class 9000 Forged Steel Socket Weld 90 DEG Elbow, 3/4 IN
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
90 DEG Elbow, Class 9000 Pressure Class, Nominal Size: 3/4 IN, Connection Type: Socket Weld, Material: Forged Steel, Material Standard: ASTM A105, Inside Diameter: 1.065 IN, Outside Diameter: 2-7/32 IN, Industry Standards: ASME B16.11, Other Physical Dimension: 1-3/4 IN Center To End, 1/2 IN Socket Length
Item Name | : | 90 DEG Elbow |
Pressure Class | : | Class 9000 |
Nominal Size | : | 3/4 IN |
Connection Type | : | Socket Weld |
Material | : | Forged Steel |
Material Standard | : | ASTM A105 |
Inside Diameter | : | 1.065 IN |
Outside Diameter | : | 2-7/32 IN |
Industry Standards | : | ASME B16.11 |
Other Physical Dimension | : | 1-3/4 IN Center To End, 1/2 IN Socket Length |
Weight | : | 2.250 LB |
