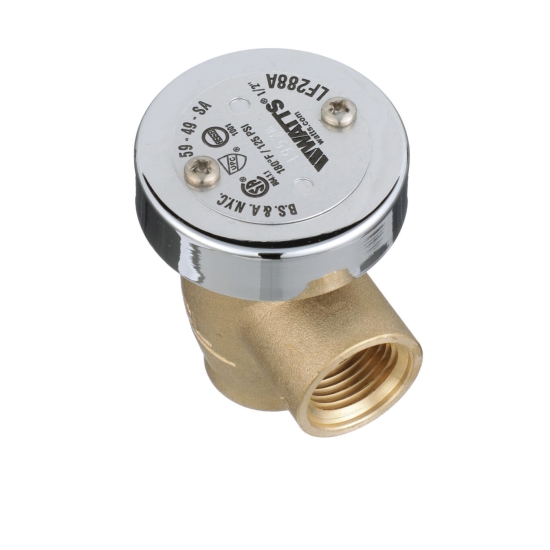

WATTS 288A Lead Free Brass Hot/Cold Water Anti-Siphon Vacuum Breaker, 1/2 IN, FNPT
This 1/2 IN lead-free anti-siphon vacuum breaker backflow preventer for hot or cold water prevents the reverse flow of polluted water from entering into the potable water supply due to back-siphonage. It consists of lead-free construction, chemical-resistant silicone seat disc, chrome hood, and an atmospheric vent to prevent spilling. It has a full size orifice to assure pipe size capacity and maximum flow. It is ideal for low flow, non-continuous hot or cold water health hazard applications such as on laboratory equipment.
Hot/Cold Water Anti-Siphon Vacuum Breaker, Series/Model: Series LF288A, Nominal Size: 1/2 IN, Connection Type: FNPT, Pressure Rating: 125 PSI, Brass Body Material, Industry Standards: C/US CSA Certified B64.1.1, UPC Approved, ASSE 1001 Approved, ANSI A112.1.1, Temperature Rating: 180 DEG F, Length: 2-3/4 IN, Other Physical Dimension: 1-1/4 IN Center To Inlet End
Item Name | : | Anti-Siphon Vacuum Breaker |
Type | : | Hot/Cold Water |
Series/Model | : | Series LF288A |
Nominal Size | : | 1/2 IN |
Connection Type | : | FNPT |
Pressure Rating | : | 125 PSI |
Body Material | : | Brass |
Industry Standards | : | C/US CSA Certified B64.1.1, UPC Approved, ASSE 1001 Approved, ANSI A112.1.1 |
Temperature Rating | : | 180 DEG F |
Length | : | 2-3/4 IN |
Other Physical Dimension | : | 1-1/4 IN Center To Inlet End |
Weight | : | 8.000 OZ |
