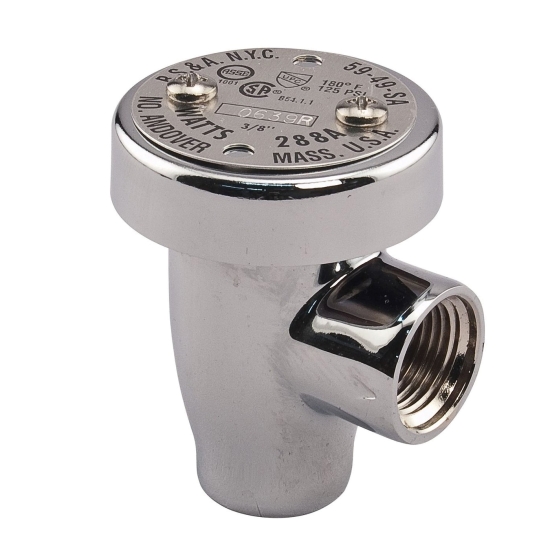

WATTS 288AC Polished Chrome Lead Free Brass Hot/Cold Water Anti-Siphon Vacuum Breaker, 3/8 IN, FNPT
This 3/8 IN lead-free polished chrome-plated anti-siphon hot or cold water vacuum breaker backflow preventer prevents the reverse flow of polluted water from entering into the potable water supply due to back-siphonage. It consists of chemical-resistant silicone seat disc, chrome hood, and an atmospheric vent to prevent spilling. It has a full size orifice to assure pipe size capacity and maximum flow. It is ideal for low flow, non-continuous hot or cold water health hazard installations such as on laboratory equipment.
Hot/Cold Water Anti-Siphon Vacuum Breaker, Series/Model: Series LF288AC, Nominal Size: 3/8 IN, Connection Type: FNPT, Pressure Rating: 125 PSI, Brass Body Material, Finish/Color: Polished Chrome, Industry Standards: C/US CSA Certified B64.1.1, UPC Approved, ASSE 1001 Approved, ANSI A112.1.1, Temperature Rating: 180 DEG F, Length: 2-1/4 IN, Other Physical Dimension: 1 IN Center To Inlet End
Item Name | : | Anti-Siphon Vacuum Breaker |
Type | : | Hot/Cold Water |
Series/Model | : | Series LF288AC |
Nominal Size | : | 3/8 IN |
Connection Type | : | FNPT |
Pressure Rating | : | 125 PSI |
Body Material | : | Brass |
Finish/Color | : | Polished Chrome |
Industry Standards | : | C/US CSA Certified B64.1.1, UPC Approved, ASSE 1001 Approved, ANSI A112.1.1 |
Temperature Rating | : | 180 DEG F |
Length | : | 2-1/4 IN |
Other Physical Dimension | : | 1 IN Center To Inlet End |
Weight | : | 6.000 OZ |
