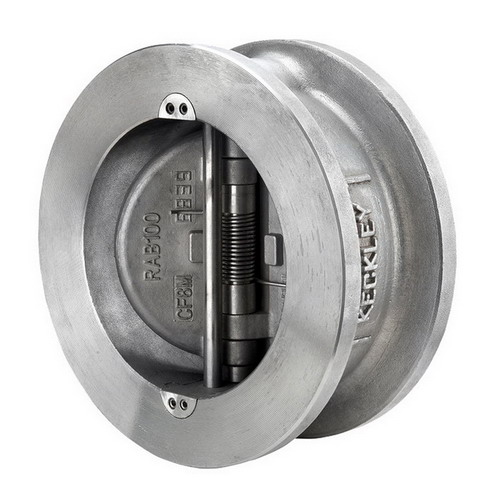

Keckley DD1F-CI-34136 Style* Class 125 Cast Iron Double Disc Check Valve, 2 IN, Wafer Flat Face
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
Wafer Style Double Disc Check Valve, Nominal Size: 2 IN, Connection Type: Flat Face, Pressure Rating: 200 PSI (WOG) At 150 DEG F, Class 125 Pressure Class, Cast Iron Body Material, Trim Material: 304 Stainless Steel Disc, Seat Material: Buna-N, Material Standard: Body: ASTM A126 Class B, Disc: ASTM A351 Grade CF8M, Industry Standards: ASME B16.1 Conform To API 594 And 6D, Testing API 598, MSS-SP-6, MSS-SP-25, MSS-SP-55, 2-1/8 IN Width, 4-1/8 IN Height, Lead Free: No
Item Name | : | Double Disc Check Valve |
Nominal Size | : | 2 IN |
Connection Type | : | Wafer Flat Face |
Pressure Rating | : | 200 PSI (WOG) At 150 DEG F |
Pressure Class | : | Class 125 |
Body Material | : | Cast Iron |
Trim Material | : | 304 Stainless Steel Disc |
Seat Material | : | Buna-N |
Material Standard | : | Body: ASTM A126 Class B, Disc: ASTM A351 Grade CF8M |
Industry Standards | : | ASME B16.1 Conform To API 594 And 6D, Testing API 598, MSS-SP-6, MSS-SP-25, MSS-SP-55 |
Width | : | 2-1/8 IN |
Height | : | 4-1/8 IN |
Lead Free | : | No |
Weight | : | 4.000 LB |
Wafer body double disc check valves offer an inexpensive way to properly protect your pipeline against flow reversal. These check valves have pin retainer holes in the body where plugs are inserted to hold the hinge pin and stop pin in place.
Application: For highly toxic, corrosive or hazardous gas chemical processing application
