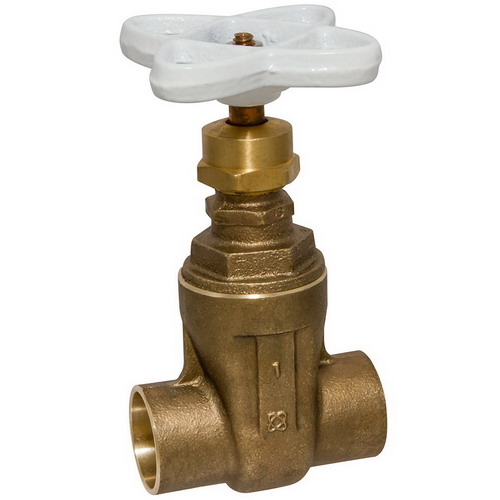

Nibco S-113 Class 125 Lead Free Silicon Bronze Handwheel Non-Rising Stem Gate Valve, 1/2 IN, Compression (Solder)
Non-Rising Stem Gate Valve, Series/Model: Model S-113-LF, Nominal Size: 1/2 IN, Connection Type: Compression (Solder), Pressure Rating: 200 PSI (CWP) Non-Shock, Class 125 Pressure Class, Silicon Bronze Body Material, Handwheel Operator Type, Handle Material: Malleable Iron, Stem Material: Silicon Bronze, Packing Material: Aramid Fibers With Graphite, Bronze Or Brass Packing Gland, Material Standard: Body: ASTM B584, Stem: ASTM B99, Gland: ASTM B62/B584/B16, Handle: ASTM A47, Material Specification: Body: UNS C87850, Stem: UNS C65100, Gland: UNS C84400, Finish/Color: White Handle, Industry Standards: MSS-SP-80/139 Compliant, NSF/ANSI 61-8,372 Certified, 1.94 IN Width, Lead Free: Yes, Other Physical Dimension: 3.63 IN Inlet Center To Top Of Handle
Item Name | : | Gate Valve |
Type | : | Non-Rising Stem |
Series/Model | : | Model S-113-LF |
Nominal Size | : | 1/2 IN |
Connection Type | : | Compression (Solder) |
Pressure Rating | : | 200 PSI (CWP) Non-Shock |
Pressure Class | : | Class 125 |
Body Material | : | Silicon Bronze |
Operator Type | : | Handwheel |
Handle Material | : | Malleable Iron |
Stem Material | : | Silicon Bronze |
Packing Material | : | Aramid Fibers With Graphite |
Gland Material | : | Bronze Or Brass Packing |
Material Standard | : | Body: ASTM B584, Stem: ASTM B99, Gland: ASTM B62/B584/B16, Handle: ASTM A47 |
Material Specification | : | Body: UNS C87850, Stem: UNS C65100, Gland: UNS C84400 |
Finish/Color | : | White Handle |
Industry Standards | : | MSS-SP-80/139 Compliant, NSF/ANSI 61-8,372 Certified |
Width | : | 1.94 IN |
Lead Free | : | Yes |
Other Physical Dimension | : | 3.63 IN Inlet Center To Top Of Handle |
Weight | : | 0.690 LB |
The NIBCO® gate valve features a screw-in bonnet for service where infrequent maintenance is required. Solder ends allow for ease of installation. The gate valve is constructed of high quality lead-free dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. The lead-free valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services. Non-rising stem gate valves are used when positive shutoff is required and a space saving is necessary. Choose NIBCO® valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® valves are backed by the NIBCO INC. 5-YR 125% limited warranty.
Application: For human consumption, including commercial and residential construction
