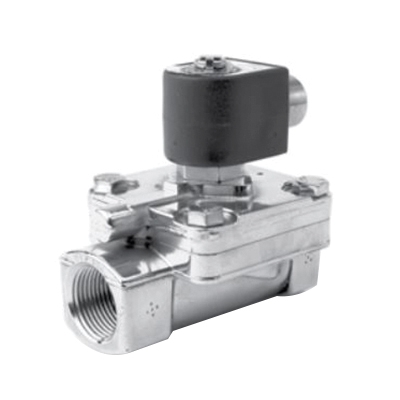

Parker Skinner™ 73212BN4TN00N0C111P3 Brass 2-Way Normally Closed Solenoid Valve, 1/2 IN, FNPT, 110 - 120 VAC
2-way direct lift, pilot and remote operated valves are designed for higher flow and medium to high pressure applications. Pilot operated valves require the minimum pressure differential specified for proper valve operation.
Sub Brand | : | Skinner™ |
Item Name | : | Solenoid Valve |
Nominal Size | : | 1/2 IN |
Connection Type | : | FNPT |
Number Of Ports/Ways | : | 2-Way |
Actuation | : | Internal Pilot Operated |
Configuration | : | Normally Closed |
Media | : | Air, Water, Light Oil And Inert Gas |
Pressure Rating | : | 5 PSI Minimum, 300 PSI Air/Inert Gas, 300 PSI Water, 300 PSI Light Oil |
Temperature Rating | : | 185 DEG F |
Orifice | : | 5/8 IN |
Body Material | : | Brass |
Seal Material | : | NBR |
Coil Insulation Class | : | Class F |
Power Rating | : | 10 W |
Voltage Rating | : | 110 - 120 VAC At 50/60 HZ |
Enclosure | : | NEMA 4X, Nut And Washer |
Electrical Connection | : | 1/2 IN NPT Conduit, 18 IN Leads |
Industry Standards | : | UL Listed And CSA Certified |
Width | : | 2-1/2 IN |
Height | : | 4.66 IN |
Additional Specifications | : | Flow Co-Efficient (Cv): 2.8 |
Brand | : | Parker |
Anti-Water Hammer | : | No |
