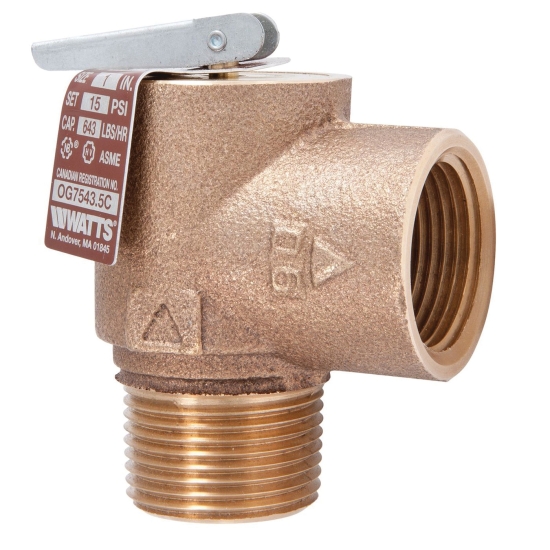

WATTS 415-M1 Forged Brass Steam Safety Relief Valve, 3/4 IN, MNPT X Threaded Female (Drain), 15 PSI
This 3/4 x 3/4 in dependable, low cost, high capacity safety relief valve is designed for low pressure, steam heating boilers and process equipment used in industrial and commercial applications. It features a brass body, stainless steel spring, top guided stem, NPT threaded male inlet by threaded female outlet (drain) connection and a non-stick Teflon® disc-to-metal seat to assure positive shut-off. The factory pressure setting for saturated steam service is set at 15 PSI. This valve has an ASME, section IV rating.
Steam Safety Relief Valve, Series/Model: Series 415-M1, Nominal Size: 3/4 IN, Connection Type: MNPT X Threaded Female (Drain), Pressure Rating: 15 PSI, Forged Brass Body Material, Seat Material: Metal, Industry Standards: ASME Section IV, ISO 9001-2000 Certified, 2-13/16 IN Height, Lead Free: No, Additional Specifications: Discharge Capacity: 450 LB/HR
Additional Specifications | : | Discharge Capacity: 450 LB/HR |
Body Material | : | Forged Brass |
Connection Type | : | MNPT X Threaded Female (Drain) |
Height | : | 2-13/16 IN |
Industry Standards | : | ASME Section IV, ISO 9001-2000 Certified |
Item Name | : | Steam Safety Relief Valve |
Lead Free | : | No |
Nominal Size | : | 3/4 IN |
Pressure Rating | : | 15 PSI |
Seat Material | : | Metal |
Series/Model | : | Series 415-M1 |
Weight | : | 0.700 LB |
