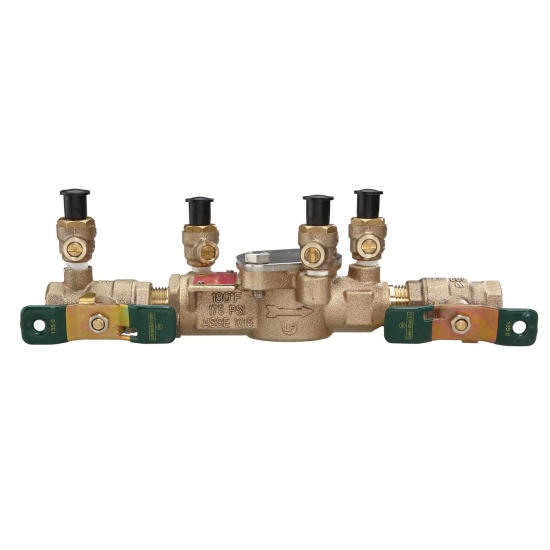

WATTS LF007-QT Lead Free Cast Copper Silicon Alloy Tee Handle Backflow Preventer Double Check Valve Assembly With Quarter-Turn Ball Valve, 1/2 IN
This 1/2 IN lead-free double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to back-siphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead-free body construction, NPT end connections, quarter turn ball valve shut-offs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.
Backflow Preventer Double Check Valve Assembly With Quarter-Turn Ball Valve, Series/Model: Series LF007-QT, Nominal Size: 1/2 IN, Pressure Rating: 175 PSI, Temperature Rating: 33 - 180 DEG F, Cast Copper Silicon Alloy Body Material, Tee Handle Operator Type, Trim Material: Rubber Disc, Industry Standards: CSA Certified, UPC And UL Listed, ASSE Standard 1015, AWWA Standard C510, IAPMO PS31 Certified, CSA B64.5, NSF/ANSI 61-G, 10 IN Width, 4-5/8 IN Height, Lead Free: Yes
Item Name | : | Double Check Valve Assembly With Quarter-Turn Ball Valve |
Type | : | Backflow Preventer |
Series/Model | : | Series LF007-QT |
Nominal Size | : | 1/2 IN |
Pressure Rating | : | 175 PSI |
Temperature Rating | : | 33 - 180 DEG F |
Body Material | : | Cast Copper Silicon Alloy |
Operator Type | : | Tee Handle |
Trim Material | : | Rubber Disc |
Industry Standards | : | CSA Certified, UPC And UL Listed, ASSE Standard 1015, AWWA Standard C510, IAPMO PS31 Certified, CSA B64.5, NSF/ANSI 61-G |
Width | : | 10 IN |
Height | : | 4-5/8 IN |
Lead Free | : | Yes |
Weight | : | 4.500 LB |
