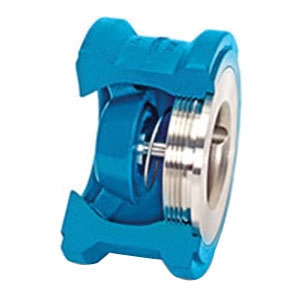

DFT ALC® 525K1B4A5 Class 150/300 Stainless Steel Check Valve, 3 IN, Wafer Raised Face
The ALC® is an in-line, spring assisted, center guided "wafer" check valve designed to prevent "water hammer" and "reverse" flow. The lightweight compact design fits between mating flanges and meets API 594 face-to-face dimensions. The ALC® is an easy to maintain check valve for applications involving liquids, gases or steam.
ALC® Check Valve, Nominal Size: 3 IN, Connection Type: Wafer Raised Face, Pressure Rating: 0.5 PSI Cracking, Class 150/300 Pressure Class, Stainless Steel Body Material, Stem Material: Nitronic 60, Trim Material: 316 Stainless Steel Disc, Seat Material: 316 Stainless Steel, Material Standard: Body: ASTM A351GR Grade CF8M, Industry Standards: ANSI B16.34, ANSI B16.5, MSS-SP-25, MSS-SP-6, MSS-SP-61, API 594, API 6D, Lead Free: No, Other Physical Dimension: 6 IN Diameter, 2.88 IN height, Additional Specifications: Flow Co-Efficient (Cv): 260
Sub Brand | : | ALC® |
Item Name | : | Check Valve |
Nominal Size | : | 3 IN |
Connection Type | : | Wafer Raised Face |
Pressure Rating | : | 0.5 PSI Cracking |
Pressure Class | : | Class 150/300 |
Body Material | : | Stainless Steel |
Stem Material | : | Nitronic 60 |
Trim Material | : | 316 Stainless Steel Disc |
Seat Material | : | 316 Stainless Steel |
Material Standard | : | Body: ASTM A351GR Grade CF8M |
Industry Standards | : | ANSI B16.34, ANSI B16.5, MSS-SP-25, MSS-SP-6, MSS-SP-61, API 594, API 6D |
Lead Free | : | No |
Other Physical Dimension | : | 6 IN Diameter, 2.88 IN height |
Additional Specifications | : | Flow Co-Efficient (Cv): 260 |
Weight | : | 12.800 LB |
