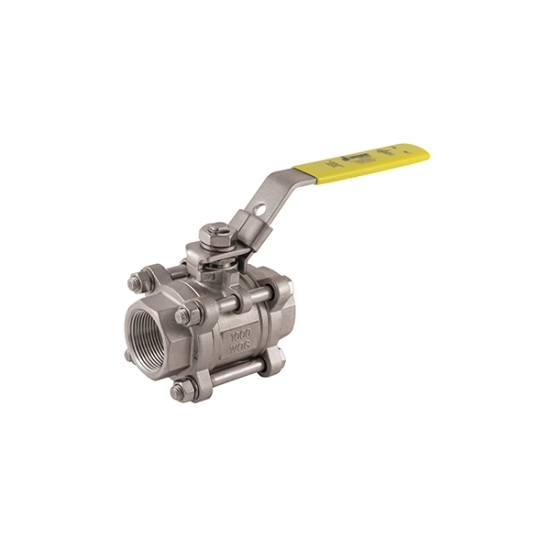

Jomar T-SS-1000N-4B Stainless Steel 3-Piece 4-Bolt Full-Port Ball Valve, 3 IN, FNPT
3-Piece 4-Bolt Full-Port Ball Valve, Series/Model: Model T-SS-1000N-4B, Nominal Size: 3 IN, Connection Type: FNPT, Pressure Rating: 1000 PSI (WOG), 150 PSI (SWP), Stainless Steel Body Material, Handle Material: 304 Stainless Steel, Stem Material: 316 Stainless Steel, Trim Material: Stainless Steel Ball, Packing Material: RPTFE, 316 Stainless Steel Gland, Seat Material: TFM 1600 Hostaflon®, Seal Material: TFM 1600 Hostaflon®, Material Standard: Body And Ball: Grade CF8M, Industry Standards: MSS-SP-110, NACE Certified, 7.52 IN Width, Lead Free: No, Other Physical Dimension: 9-3/4 IN Handle Length, 5.26 IN Top Of Handle To Inlet Center, Additional Specifications: Torque Rating: 600 IN-LB
Item Name | : | Ball Valve |
Type | : | 3-Piece, 4-Bolt, Full-Port |
Series/Model | : | Model T-SS-1000N-4B |
Nominal Size | : | 3 IN |
Connection Type | : | FNPT |
Pressure Rating | : | 1000 PSI (WOG), 150 PSI (SWP) |
Body Material | : | Stainless Steel |
Handle Material | : | 304 Stainless Steel |
Stem Material | : | 316 Stainless Steel |
Trim Material | : | Stainless Steel Ball |
Packing Material | : | RPTFE |
Gland Material | : | 316 Stainless Steel |
Seat Material | : | TFM 1600 Hostaflon® |
Seal Material | : | TFM 1600 Hostaflon® |
Material Standard | : | Body And Ball: Grade CF8M |
Industry Standards | : | MSS-SP-110, NACE Certified |
Width | : | 7.52 IN |
Lead Free | : | No |
Other Physical Dimension | : | 9-3/4 IN Handle Length, 5.26 IN Top Of Handle To Inlet Center |
Additional Specifications | : | Torque Rating: 600 IN-LB |
Weight | : | 56.000 LB/Carton |
