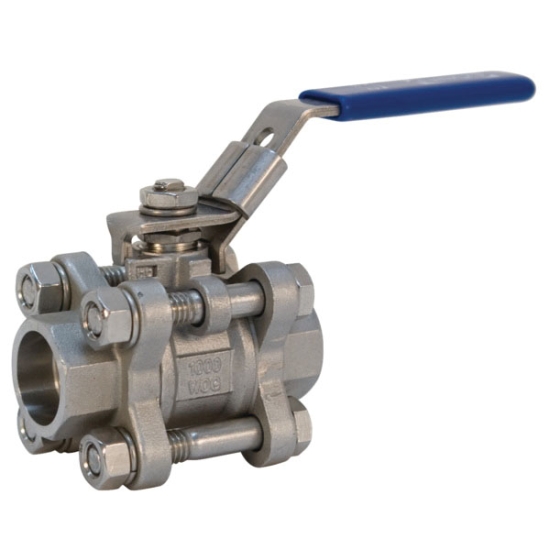

Nibco K-595-S6-R-66 Stainless Steel Locking Lever Handle 3-Piece Full-Port Ball Valve, 1 IN, Socket Weld
The Nibco® stainless steel ball valve provides bubble-tight shut-off at 1000 PSI. This valve features socket weld connections for easy installation. The 3-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications. This valve features a standard locking lever handle for security. It may be used for isolation and throttling (half open to full open only).
3-Piece Full-Port Ball Valve, Series/Model: Model K-595-S6-R-66-LL, Nominal Size: 1 IN, Connection Type: Socket Weld, Pressure Rating: 1000 PSI (CWP) Non-Shock, Temperature Rating: 400 DEG F, Stainless Steel Body Material, Locking Lever Handle Operator Type, Handle Material: 304 Stainless Steel, Stem Material: 316 Stainless Steel, Trim Material: 316 Stainless Steel Trim And Ball, Packing Material: Carbon Filled PTFE Stem, 316 Stainless Steel Packing Gland, Seat Material: Reinforced PTFE, Seal Material: Reinforced PTFE, Material Standard: Body: ASTM A351 Grade CF8M, Ball: ASTM A276/A351 Grade CF8M, Stem And Gland: ASTM A276, Industry Standards: MSS-SP-110 Compliant, 3.62 IN Width, Lead Free: No, Other Physical Dimension: 2.95 IN Inlet Center To Top Of Handle, 5.71 IN Handle Length
Item Name | : | Ball Valve |
Type | : | 3-Piece, Full-Port |
Series/Model | : | Model K-595-S6-R-66-LL |
Nominal Size | : | 1 IN |
Connection Type | : | Socket Weld |
Pressure Rating | : | 1000 PSI (CWP) Non-Shock |
Temperature Rating | : | 400 DEG F |
Body Material | : | Stainless Steel |
Operator Type | : | Locking Lever Handle |
Handle Material | : | 304 Stainless Steel |
Stem Material | : | 316 Stainless Steel |
Trim Material | : | 316 Stainless Steel Trim And Ball |
Packing Material | : | Carbon Filled PTFE Stem |
Gland Material | : | 316 Stainless Steel Packing |
Seat Material | : | Reinforced PTFE |
Seal Material | : | Reinforced PTFE |
Material Standard | : | Body: ASTM A351 Grade CF8M, Ball: ASTM A276/A351 Grade CF8M, Stem And Gland: ASTM A276 |
Industry Standards | : | MSS-SP-110 Compliant |
Width | : | 3.62 IN |
Lead Free | : | No |
Other Physical Dimension | : | 2.95 IN Inlet Center To Top Of Handle, 5.71 IN Handle Length |
Weight | : | 2.930 LB |
