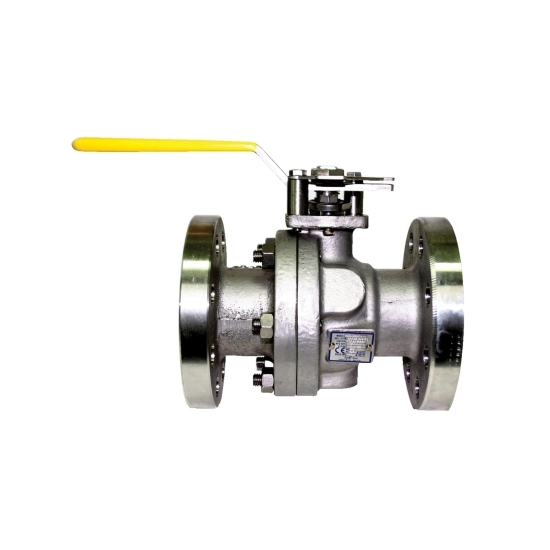

Apollo Valves 87A-900 Class 300 Stainless Steel Lever Handle Ball Valve, 3 IN, Flanged
Ball Valve, Series/Model: Series 87A-900, Nominal Size: 3 IN, Connection Type: Flanged, Pressure Rating: 150 PSI (SWP), Class 300 Pressure Class, Temperature Rating: -50 To 600 DEG F, Stainless Steel Body Material, Lever Handle Operator Type, Stem Material: 316 Stainless Steel, Trim Material: 316 Stainless Steel Ball, Seat Material: PTFE, Seal Material: PTFE, Material Standard: Body: ASTM A351, Stem: ASTM A276/A351, Ball: ASTM A276, Material Specification: Body: UNS C84400, Industry Standards: Meets NACE MR0175 2000 And 2003, CSA ASME B16.33 And B16.38, 11.12 IN Width, Lead Free: No, Other Physical Dimension: 8.8 IN Inlet Center To Top Of Handle, Additional Specifications: Flow Co-Efficient (Cv): 1021
Item Name | : | Ball Valve |
Series/Model | : | Series 87A-900 |
Nominal Size | : | 3 IN |
Connection Type | : | Flanged |
Pressure Rating | : | 150 PSI (SWP) |
Pressure Class | : | Class 300 |
Temperature Rating | : | -50 To 600 DEG F |
Body Material | : | Stainless Steel |
Operator Type | : | Lever Handle |
Stem Material | : | 316 Stainless Steel |
Trim Material | : | 316 Stainless Steel Ball |
Seat Material | : | PTFE |
Seal Material | : | PTFE |
Material Standard | : | Body: ASTM A351, Stem: ASTM A276/A351, Ball: ASTM A276 |
Material Specification | : | Body: UNS C84400 |
Industry Standards | : | Meets NACE MR0175 2000 And 2003, CSA ASME B16.33 And B16.38 |
Width | : | 11.12 IN |
Lead Free | : | No |
Other Physical Dimension | : | 8.8 IN Inlet Center To Top Of Handle |
Additional Specifications | : | Flow Co-Efficient (Cv): 1021 |
Weight | : | 78.000 LB |
