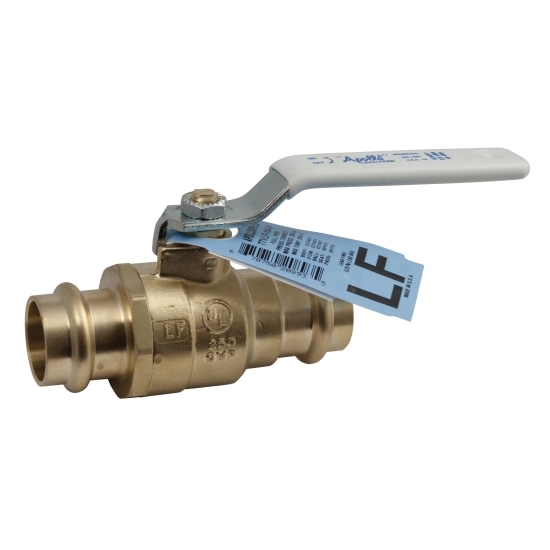

Apollo Valves Apolloxpress® 77VLF-140 Lead Free Brass Lever Handle 2-Piece Full-Port Standard Ball Valve, 1/2 IN, Press
Apolloxpress® 2-Piece Full-Port Standard Ball Valve, Series/Model: Series 77VLF-140, Nominal Size: 1/2 IN, Connection Type: Press, Pressure Rating: 250 PSI, Temperature Rating: 0 - 250 DEG F, Brass Body Material, Lever Handle Operator Type, Handle Material: Steel, Stem Material: 316 Stainless Steel, Trim Material: 316 Stainless Steel Ball, Packing Material: RPTFE Stem, Brass Gland, Seat Material: RPTFE, Seal Material: EPDM, Material Standard: Ball And Stem: ASTM A276, Gland: ASTM B16, Material Specification: Body: UNS C27451, Finish/Color: Plated Handle, Industry Standards: MSS-SP-110 Compliant, NSF/ANSI 372 Lead Free, IAPMO IGC-157 Certified, Directive 2011/65/CE (RoHS), UL Listed, 2.89 IN Width, Lead Free: Yes, Other Physical Dimension: 1.66 IN Inlet Center To Top Of Handle, 2.85 IN Handle Length
Sub Brand | : | Apolloxpress® |
Item Name | : | Standard Ball Valve |
Type | : | 2-Piece, Full-Port |
Series/Model | : | Series 77VLF-140 |
Nominal Size | : | 1/2 IN |
Connection Type | : | Press |
Pressure Rating | : | 250 PSI |
Temperature Rating | : | 0 - 250 DEG F |
Body Material | : | Brass |
Operator Type | : | Lever Handle |
Handle Material | : | Steel |
Stem Material | : | 316 Stainless Steel |
Trim Material | : | 316 Stainless Steel Ball |
Packing Material | : | RPTFE Stem |
Gland Material | : | Brass |
Seat Material | : | RPTFE |
Seal Material | : | EPDM |
Material Standard | : | Ball And Stem: ASTM A276, Gland: ASTM B16 |
Material Specification | : | Body: UNS C27451 |
Finish/Color | : | Plated Handle |
Industry Standards | : | MSS-SP-110 Compliant, NSF/ANSI 372 Lead Free, IAPMO IGC-157 Certified, Directive 2011/65/CE (RoHS), UL Listed |
Width | : | 2.89 IN |
Lead Free | : | Yes |
Other Physical Dimension | : | 1.66 IN Inlet Center To Top Of Handle, 2.85 IN Handle Length |
Weight | : | 0.400 LB |
The ApolloPress® 77VLF140 series lead-free two-piece press ball valve is ideal for installation in most plumbing and heating systems, including potable water. Now with Leak Before Press® feature and 300 PSIG maximum working pressure. Proudly Made in the USA.
