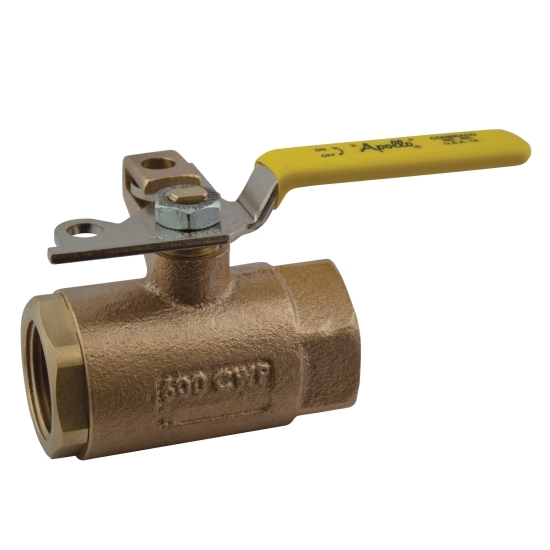

Apollo Valves 75-100 Bronze Locking Lever Handle Standard Ball Valve, 3/4 IN, FNPT
Standard Ball Valve, Series/Model: Series 75-100, Nominal Size: 3/4 IN, Connection Type: FNPT, Pressure Rating: 600 PSI (CWP), 150 PSI (SWP), Temperature Rating: 0 - 500 DEG F, 0.87 IN Opening, Bronze Body Material, Locking Lever Handle Operator Type, Handle Material: Steel With Vinyl Grip, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: MPTFE Stem, Seat Material: RPTFE, Seal Material: PTFE, Material Standard: Body: ASTM B584, Ball And Stem: ASTM B16, Material Specification: Body: UNS C84400, Finish/Color: Zinc Plated Handle, Chrome Plated Ball, Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C, 3.37 IN Width, Lead Free: No, Other Physical Dimension: 2-1/4 IN Inlet Center To Top Of Handle, 3.87 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 30
Item Name | : | Standard Ball Valve |
Series/Model | : | Series 75-100 |
Nominal Size | : | 3/4 IN |
Connection Type | : | FNPT |
Pressure Rating | : | 600 PSI (CWP), 150 PSI (SWP) |
Temperature Rating | : | 0 - 500 DEG F |
Opening Size | : | 0.87 IN |
Body Material | : | Bronze |
Operator Type | : | Locking Lever Handle |
Handle Material | : | Steel With Vinyl Grip |
Stem Material | : | Brass |
Trim Material | : | Brass Ball |
Packing Material | : | MPTFE Stem |
Seat Material | : | RPTFE |
Seal Material | : | PTFE |
Material Standard | : | Body: ASTM B584, Ball And Stem: ASTM B16 |
Material Specification | : | Body: UNS C84400 |
Finish/Color | : | Zinc Plated Handle, Chrome Plated Ball |
Industry Standards | : | MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C |
Width | : | 3.37 IN |
Lead Free | : | No |
Other Physical Dimension | : | 2-1/4 IN Inlet Center To Top Of Handle, 3.87 IN Handle Length |
Additional Specifications | : | Flow Co-Efficient (Cv): 30 |
Weight | : | 2.030 LB |
This Apollo® ball valve meets OSHA standards and provides for easy, safe maintenance of pneumatic tools. Valve can be padlocked in the OPEN or CLOSED position with the same hardware.
