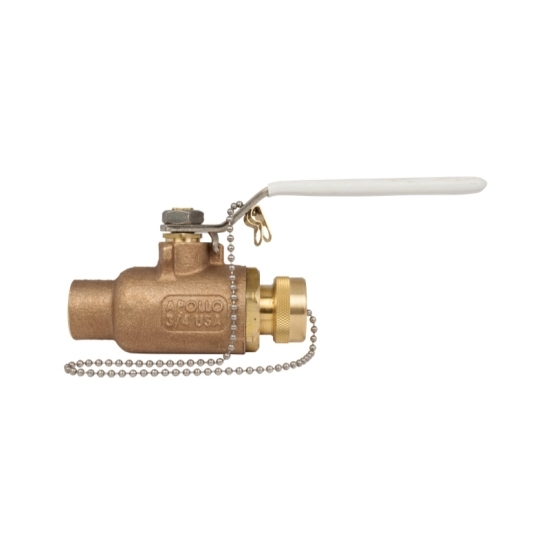

Apollo Valves 70LF-200-HC Lead Free Bronze Lever Handle 2-Piece Full-Port In-Line Ball Valve, 1/2 X 3/4 IN, Solder X Hose
2-Piece Full-Port In-Line Ball Valve, Series/Model: Series 70LF-200-HC, Nominal Size: 1/2 X 3/4 IN, Connection Type: Solder X Hose, Pressure Rating: 600 PSI (CWP), Temperature Rating: Up To 210 DEG F, 1/2 IN Opening, Bronze Body Material, Lever Handle Operator Type, Handle Material: Stainless Steel With Vinyl Grip, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: MPTFE Stem, Seat Material: RPTFE, Seal Material: PTFE, Material Specification: Body: UNS C89836, Ball And Stem: UNS C27451, Finish/Color: Chrome Plated Ball, Industry Standards: MSS-SP-110 Compliant, ANSI/NSF 61, ANSI/NSF 372, 3.28 IN Width, Lead Free: Yes, Other Physical Dimension: 1-3/4 IN Inlet Center To Top Of Handle, 3.89 IN Handle Length
Item Name | : | In-Line Ball Valve |
Type | : | 2-Piece, Full-Port |
Series/Model | : | Series 70LF-200-HC |
Nominal Size | : | 1/2 X 3/4 IN |
Connection Type | : | Solder X Hose |
Pressure Rating | : | 600 PSI (CWP) |
Temperature Rating | : | Up To 210 DEG F |
Opening Size | : | 1/2 IN |
Body Material | : | Bronze |
Operator Type | : | Lever Handle |
Handle Material | : | Stainless Steel With Vinyl Grip |
Stem Material | : | Brass |
Trim Material | : | Brass Ball |
Packing Material | : | MPTFE Stem |
Seat Material | : | RPTFE |
Seal Material | : | PTFE |
Material Specification | : | Body: UNS C89836, Ball And Stem: UNS C27451 |
Finish/Color | : | Chrome Plated Ball |
Industry Standards | : | MSS-SP-110 Compliant, ANSI/NSF 61, ANSI/NSF 372 |
Width | : | 3.28 IN |
Lead Free | : | Yes |
Other Physical Dimension | : | 1-3/4 IN Inlet Center To Top Of Handle, 3.89 IN Handle Length |
Weight | : | 0.710 LB |
The Apollo® 70LF-HC models are ideally suited for direct connection to hoses. Valves feature a heavy-duty machined hose thread cover with heavy-duty stainless steel chain to prevent loss. Standard lever and nut and ball chain are stainless steel.
